4 Link Heim Joint Rod Ends 1.5" 4-Link Bars

No reviews yet Write a Review
Heim Joint Rod End 1.5" Link Bars   Heim: Material: Heat-treated chromoly steel for strength and wear resistance Left & Right Hand Thread Included…
SKU: RE-1.5
$75.00
icon Share icon Share
Description

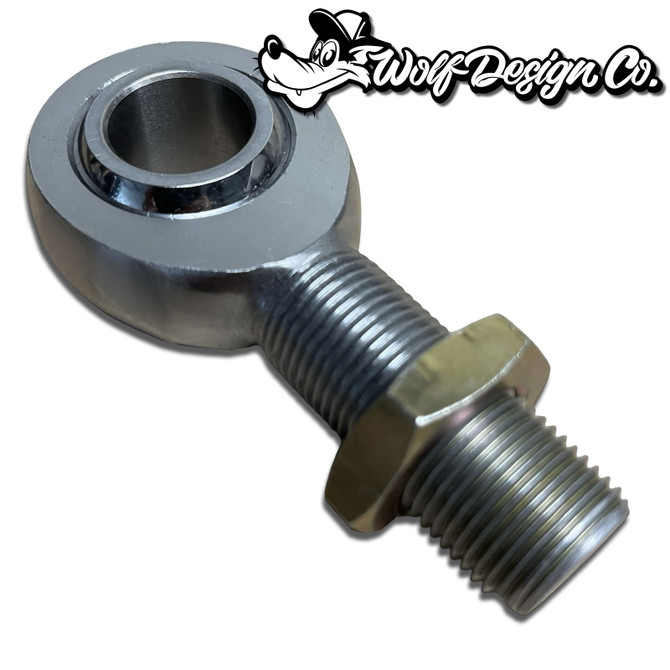

Heim Joint Rod End 1.5" Link Bars



Heim:

  • Material: Heat-treated chromoly steel for strength and wear resistance

  • Left & Right Hand Thread Included 2 Piece Kit

  • Bore 3/4 (.750)

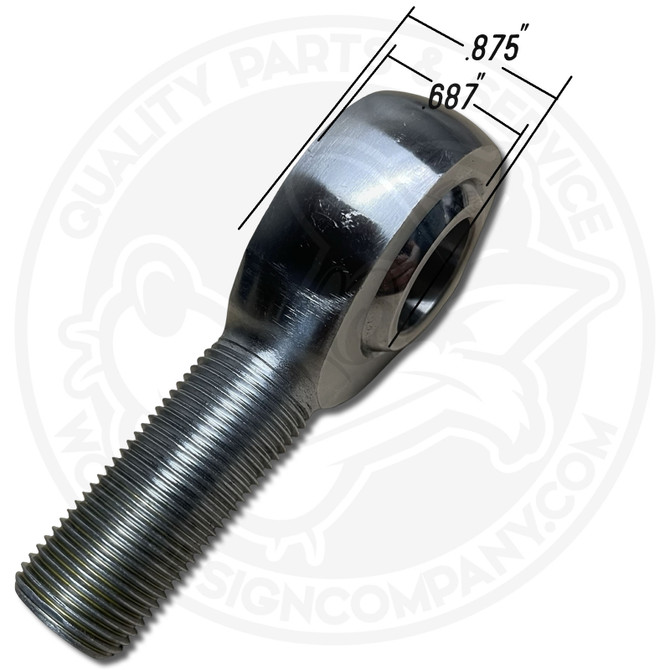

  • Width .687

  • Ball Width 7/8  (.875)

  • Thread 3/4-16

  • Thread Length 1.75"

  • Center Line Length 2.875

  • Static Load: 15,000 lb.

  • Total length: 3.8"

  • Housing Finish: Zinc-plated for corrosion resistance

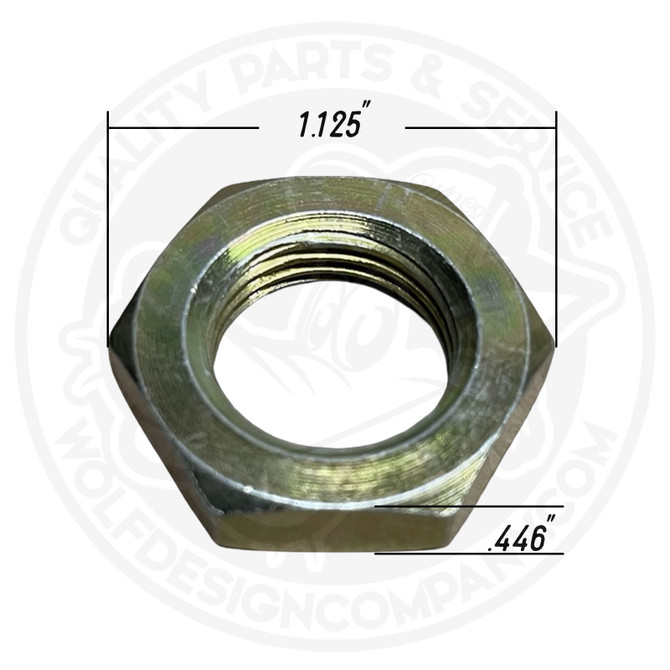

  • Jam nut included

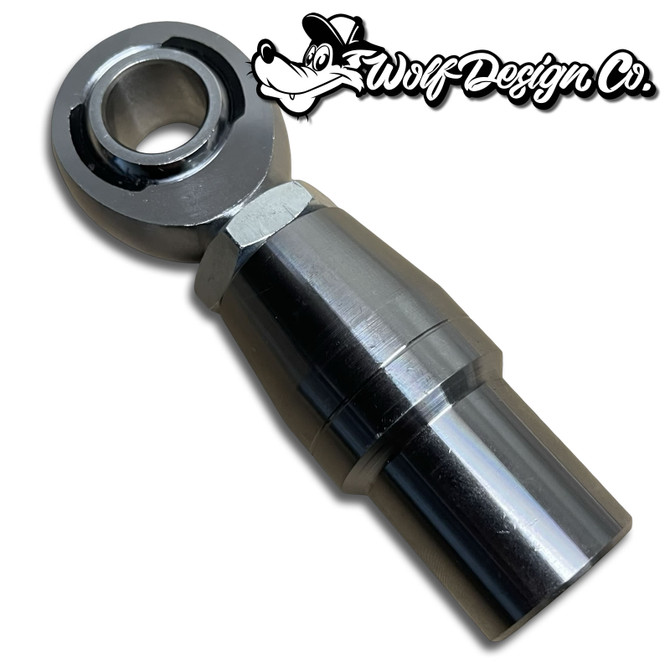

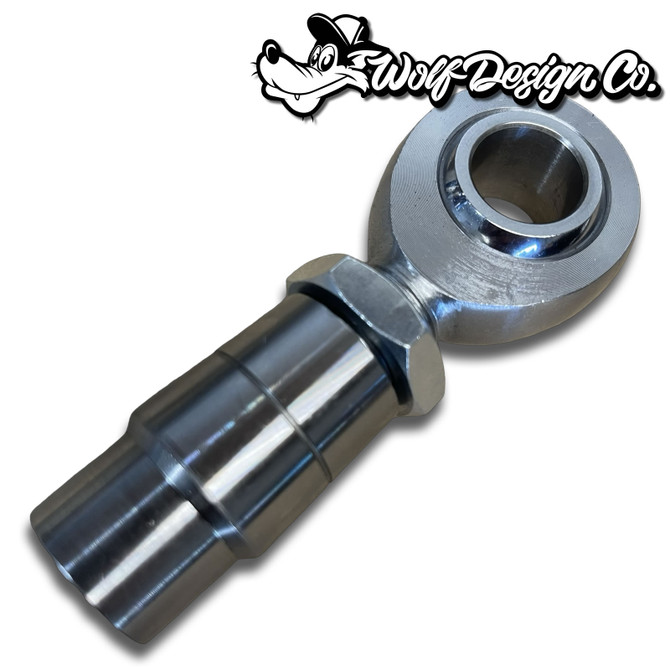

Bung:
  • 3/4 Bung
  • 1.25" OD x .160" Wall x .930" ID
  • Thread Size  3/4"-16
  • Fits Tube 1 1/2 OD X .120" Wall X 1.25" ID
