This C10 crossmember allows you to lay frame rails on the ground with up to a 30" tall tire. The kit replaces the factory crossmember with a low-profile drop member. The key features include a narrowed front track width, and centered wheels. This insures increased tire clearance and drivability at the lowest ride height. Bolt-on assembly with no welding required.
Included:
- Fits 1963-1972 & 1973-1987 C10 2WD ONLY (Choose Option When Adding To Cart)
- Low-Profile Crossmember
- Narrowed 1 Inch Upper Arms With Ball Joints (For 73-87 C10 Spindles)
- 1 Inch Forward Lower Control Arms With Ball Joints (Centering The Wheel) (For 73-87 C10 Spindles)

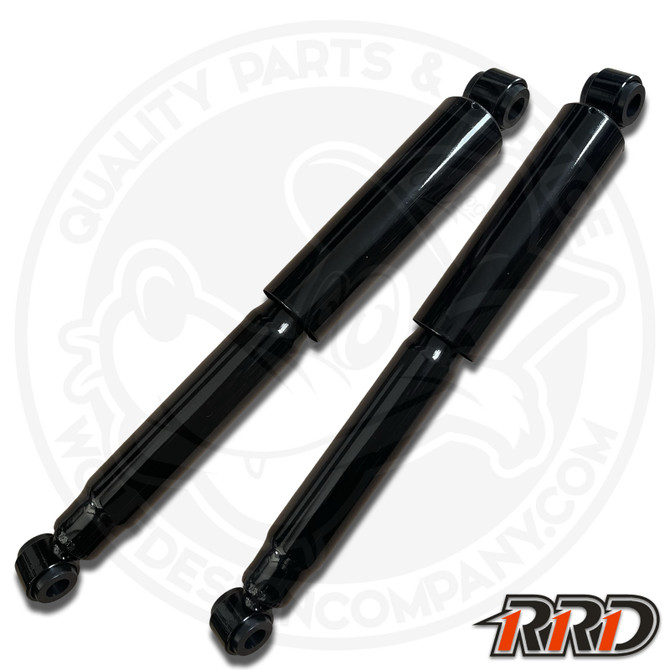

- Pair Of Nitro Gas-Charged Shocks
- LS or SBC 350 Motor Mounts
- Rack And Pinion Conversion Mount
- Mustang II Power Rack And Pinion
- Upper & Lower Ball Joints
- Machined Custom Tie Rods (For 73-87 C10 Spindles)
- All Necessary Hardware Is Include
*Note: This Kit Converts Your Front End To 73-87 Components (Tie Rods, Ball Joint ). Requires 1973-1987 Spindles
Available In Our Store
Optional Add-Ons:
- Add 3" Lowering Spindles (1973-1987 C10)
- Add Zinc Plated Drilled & Slotted Rotors With Bearings
- Add Calipers With Steel Braided Brake Lines
- Add Air Bags
