Ford 9" Rear End - Custom Built Universal

Features:

• Built To Your Length (Bearing End To Bearing End)
• All Rear Ends Built Center Pinion
• Blank Tubes (install Your Custom Or Factory Suspension Brackets)
• Professionally Welded Made To Order In The USA
• Allow 5-7 Business Days For Assembly & Packaging

Choose Your Center Section:

• Classic Galaxy Web Round Back
• Classic Galaxy Web Notch Back

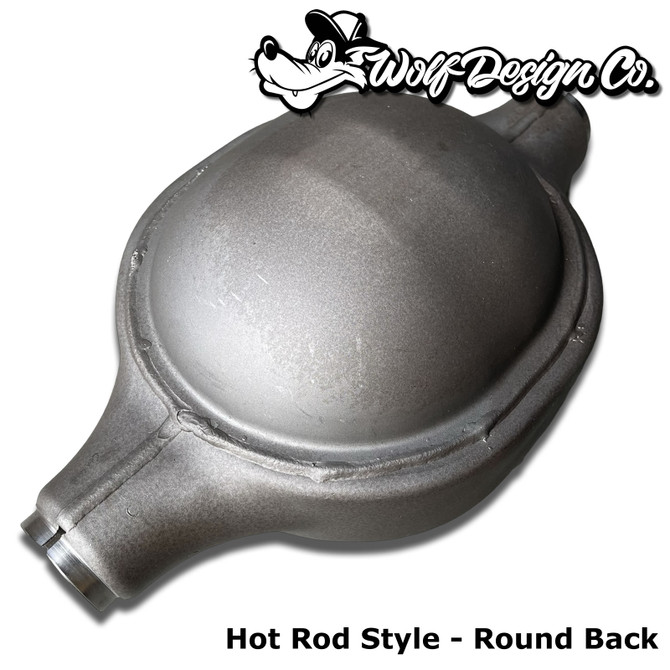

• Hot Rod Round Back
• Hot Rod Notch Back
• Fab 9 (Fabricated Housing)
• Modular Aluminum

Choose Your Bearing Ends

• New Big Ford (Torino Style) 3/8
• Old Big Ford 1/2
• Small Bearing

Choose Your Housing Length

• 45"-60" Length Available (Bearing Face To Face, Add 5" For Wheel Mounting Surface To Surface)
• Note if you need a 1/2" or 1/4" Pick Option Below desired Length And Add A Note When Checking Out For Additional Length
• Built Centered Pinion (One Side Shorter Than The Other)
• This is measure from The Bearing Face To Bearing Face

Choose You Axles

• 31 Spline Dula Bolt Patter 5X4.75 or 5X4.5
• Cut to length For Desired Housing Length

Choose Your Third Member

• 31-Spline
• Through bolt Billet caps
• Anodized Billet Pinion support
• 3.062'' carrier bearing
• 1350 Billet Aluminum Yoke
• Worm Drive Limited Slip Differential (LSD)
• Non clutch style - wont require gear oil additive
• Shipped in Plastic Tote for additional protection
• 100% all new parts

Choose Your Brakes

• Drum Kit - Includes Backing Plates & Drums
• 11" Economy Drilled & Slotted Disc Brakes Available With Or With Out E-Brake Silver Black Or Red Calipers
• 12" Big Brake Kit With Black Calipers Available With Silver Zinc Or Black Rotors
• See Pictures For Options

Note Kits Ship Unassembled
